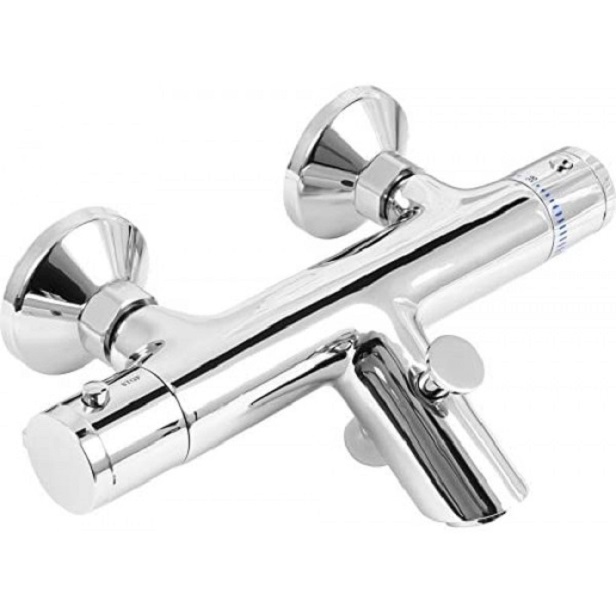

Stroma Thermostatic Bath/Shower Head Mixer Valve 13003

Stroma Thermostatic Bath/Shower Head Mixer Valve 13003

Stroma thermostatic bath mixer valve with standard 1/2" shower hose attachment on the underside of the spout. Shower hose and head can be purchased separately

This thermostatic mixer valve can be wall or deck mounted but if deck mounted a pair of mounting legs will be required

The button on the top of the spout enables the water flow to be easily diverted from bath to shower head

Suitable for high pressure and combi boiler systems with a supply pressure of 1.0bar - 5.0bar

Flow rate 7.5ltr/min at 1bar

Bar mixer pipe centres - 150mm +/-5mm

Solid brass body finished in bright chrome

Output temp range is 20°c - 50°c with a security stop able to be set at 38°c to prevent scalding

Width: 285mm

Depth or Projection: 175mm

Product Code 13003
