Bristan 1/2" BSP Tap Gland - 20 Teeth DISC205 A2

Bristan 1/2" BSP Tap Gland - 20 Teeth DISC205 A2

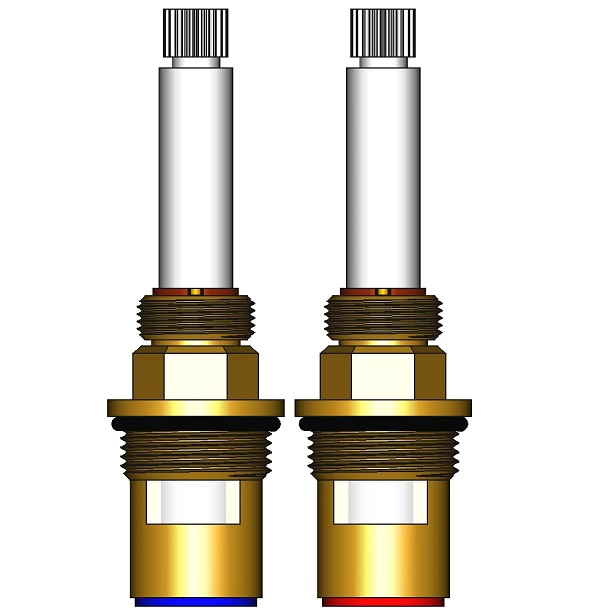

Tap glands ceramic disc supplied as a pair. One of the tap valves has a red silicone gasket for hot, cartridge opens clockwise and the other has a blue silicone gasket for cold, cartridge turns anti clockwise

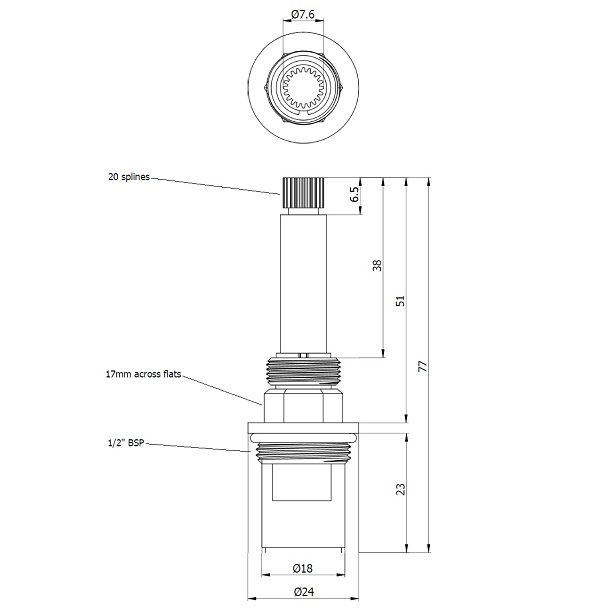

1/2"​BSP

Spline 20 teeth x Ø7.6mm x 5mm height - 6.5mm to base of undercut

Spline reference A2

Total height 77mm

Large flange diameter 24mm

These cartridges will fit the following Bristan taps

Bristan 1901 Bridge Sink Mixer

Bristan 1901 Easyfit Sink Mixer

Bristan 1901 High Neck Pillar Taps

Bristan 1901 Wall Mounted Bridge Sink Mixer

​Manufacturer code: Bristan 310V10146CP
