3/4" BSP Ceramic Disc Tap Glands 24 Teeth DISC020 B2

3/4" BSP Ceramic Disc Tap Glands 24 Teeth DISC020 B2

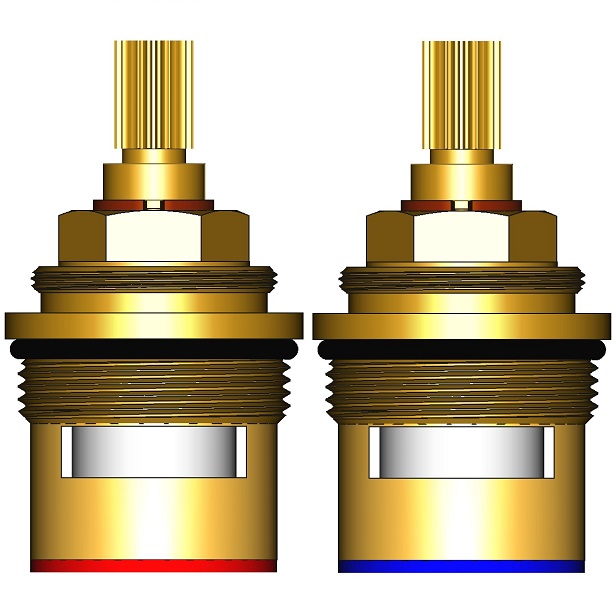

Tap glands ceramic disc supplied as a pair. One of the tap valves has a red silicone gasket for hot, cartridge opens clockwise and the other has a blue silicone gasket for cold, cartridge opens anti clockwise

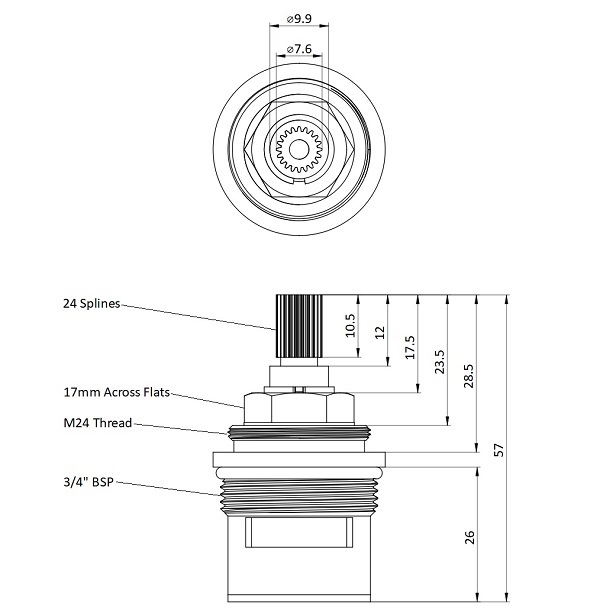

3/4" BSP (standard sink tap socket thread)

Spline 24 teeth x Ø7.6mm x 10.5mm height - 12mm to base of undercut

Spline reference B2

Total height 57mm

Largest diameter 29mm

M24 x 1.0mm threaded collar

Solid brass body with M4 screw to secure existing cap/handle

DISC020
