3/4" BSP Ceramic Disc Tap Glands 20 Teeth DISC011 A2

3/4" BSP Ceramic Disc Tap Glands 20 Teeth DISC011 A2

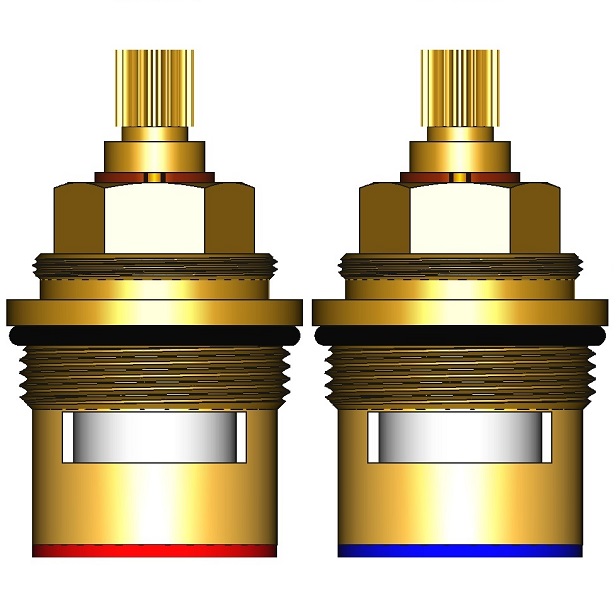

Tap glands and tap valves quarter turn ceramic disc tap cartridges supplied as a pair. One of the tap valves has a red silicone gasket for hot, tap cartridge opens clockwise and the other has a blue silicone gasket for cold, tap cartridge opens anti-clockwise

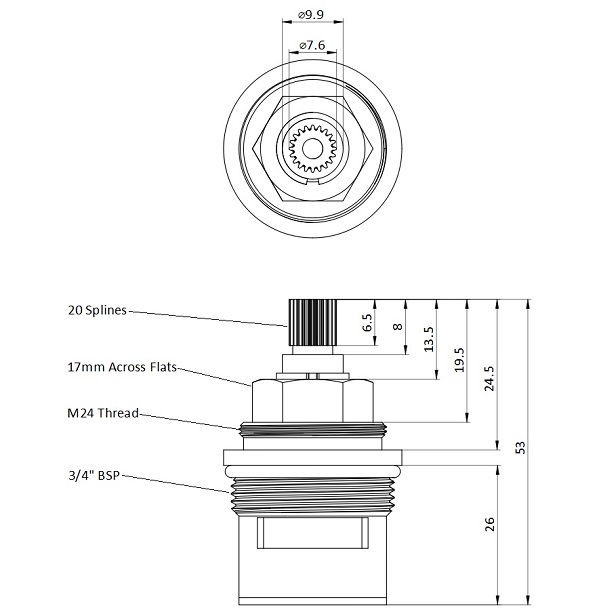

3/4" BSP (standard sink tap socket thread)

Spline 20 teeth x Ø7.6mm x 6.5mm height - 8mm to base of undercut

Spline reference A2

Total height 53mm

Largest diameter 29mm

M24 x 1.0mm threaded collar

Solid brass body with M4 screw to secure existing cap/handle

8287800 - Cold + DF8188 - Hot

DISC011
