M20 Ceramic Disc Tap Glands 28 Teeth DISC055 D5

M20 Ceramic Disc Tap Glands 28 Teeth DISC055 D5

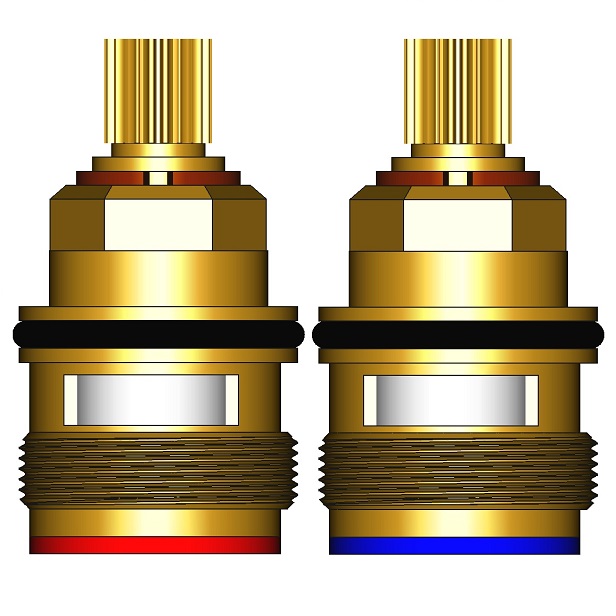

Tap glands and tap valves quarter turn ceramic disc tap cartridges supplied as a pair

One of the tap valves has a red silicone gasket for hot, cartridge opens clockwise and the other has a blue silicone gasket for cold, cartridge opens anti clockwise

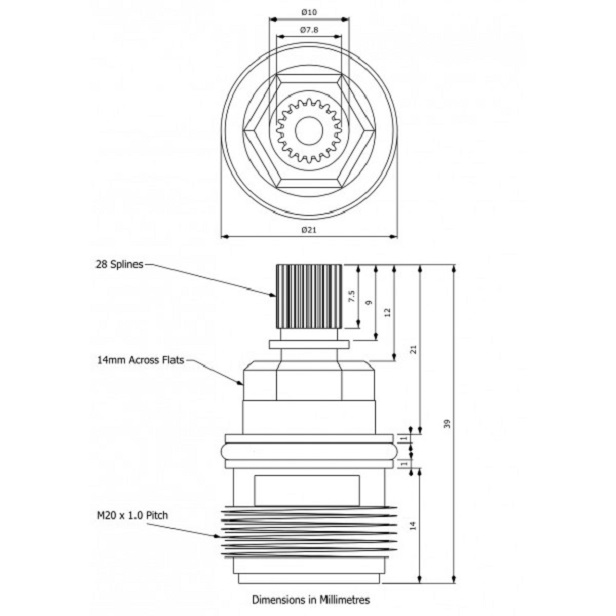

20mm x 1.0mm thread

Spline 28 teeth x Ø7.8mm x 7.5mm height - 9mm to base of undercut

Spline reference D5

Total height 39mm

Solid brass body with M4 screw to secure existing cap/handle

Replacement cartridges for

Franke Ascona, Bern, Sinos, Sion SP3794R-H, 3308R-H SP3794R-C, 3308R-C

Howdens Lamona Arona Monobloc TAP9103

Howdens Lamona Como Monobloc TAP3580

Howdens Lamona Enza Monobloc TAP3585

Howdens Lamona Sorico Monobloc TAP3582

DF8179 - Hot + DF8180 - Cold

DISC055
